02

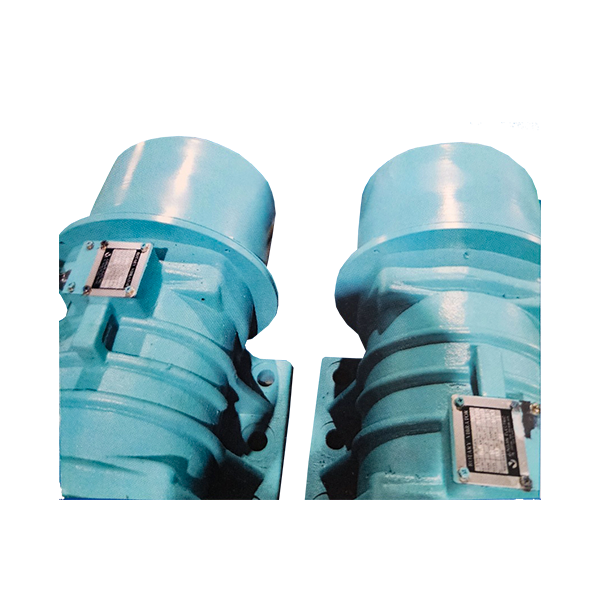

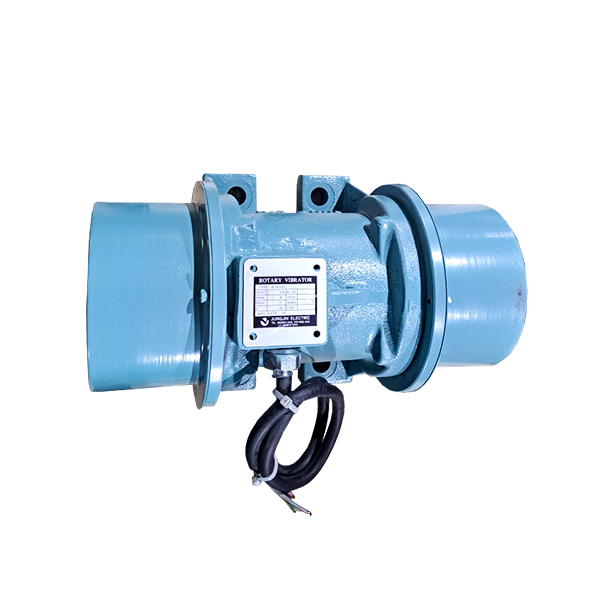

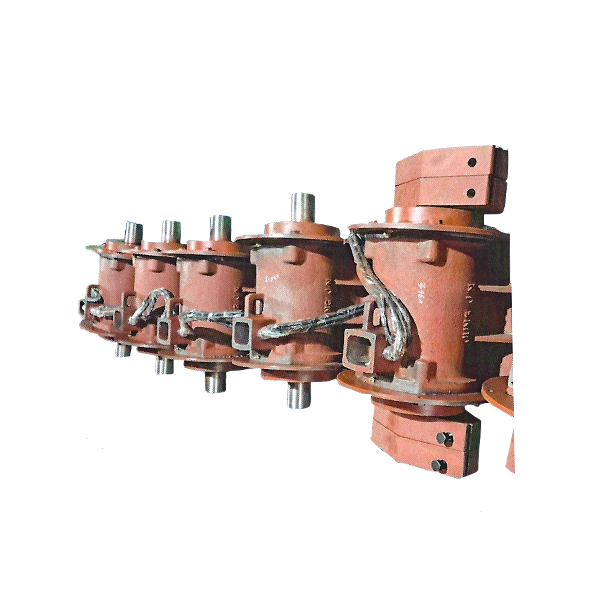

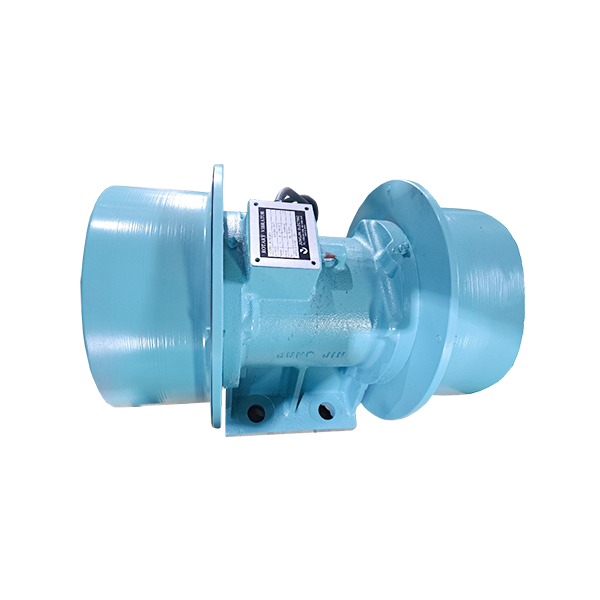

ROTARY VIBRATOR
2 POLE TYPE VIBRATOR SPECIFICATION & DIMENSION
4 POLE TYPE VIBRATOR SPECIFICATION & DIMENSION
6 POLE TYPE VIBRATOR SPECIFICATION & DIMENSION
8 POLE TYPE VIBRATOR SPECIFICATION & DIMENSION
특징
Features
  • 완전 방수, 방진 구조
  • 풍부한 기종이 있으며, 강력한 진동과 최적의 출력
  • 수명이 길고 보수가 용이
  • 진동력 조정 가능
용도
Usage
  • 내부입체 부착방지
  • 진동 응용기기 공급, 수송, 선별, 분쇄, 연마, 정열
치수
Size
2 POLE TYPE VIBRATOR SPECIFICATION & DIMENSION
Frame
Type-S
Utility Power
3Phase x 60Hz/50Hz x Any Voltage
Model Output
(kw)		 Horse Power
(HP)		 Exciting Force
(kg)		 Rpm
(60/50Hz)		 Dimensions Weight
(kg)
A B C D E F G H ⌽
JVC-112 1.1 1.5 1400 3600/3000 443 300 275 ⌽238 180 110 210 130 18∅ 38
JVC-152 1.5 2 2000 3600/3000 455 320 275 ⌽238 180 110 220 135 18∅ 38
JVC-222 2.2 3 3000 3600/3000 475 365 376 ⌽326 260 150 200 180 18∅ 94
JVC-372 - - - 3600/3000 - - - - 290 130 - - 32∅ 85
4 POLE TYPE VIBRATOR SPECIFICATION & DIMENSION
Frame
Type-M
Utility Power
3Phase x 60Hz/50Hz x Any Voltage
Model Output
(kw)		 Horse Power
(HP)		 Exciting Force
(kg)		 Rpm
(60/50Hz)		 Dimensions Weight
(kg)
A B C D E F G H ⌽d
JVC-024 - - - 1800/1500 - - - - 180 110 - - 18⌽ 38
JVC-044 - - 800 1800/1500 - - - - 180 110 - - 18⌽ 38
JVC-0754 - - 1500 1800/1500 - - - - 195 100 - - 22⌽ -
JVC-154 1.5 2 3500 1800/1500 475 365 376 ⌽325 290 130 203 180 32x4 96
JVC-224 2.2 3 4500 1800/1500 475 365 376 ⌽325 290 130 203 180 32x4 112
JVC-374 3.7 5 7500 1800/1500 684 413 370 ⌽323 340 110x2 302 178 32x6 202
JVC-554 5.5 7.5 8000 1800/1500 743 413 370 ⌽323 340 110x2 302 178 32x6 238
6 POLE TYPE VIBRATOR SPECIFICATION & DIMENSION
Frame
Type-L
Utility Power
3Phase x 60Hz/50Hz x Any Voltage
Model Output
(kw)		 Horse Power
(HP)		 Exciting Force
(kg)		 Rpm
(60/50Hz)		 Dimensions Weight
(kg)
A B C D E F G H ⌽d
JVC-116 1.1 1.5 2000 1200/1000 475 365 376 ⌽325 290 130 203 180 32x4 95
JVC-156 1.5 2 2700 1200/1000 475 365 376 ⌽325 290 130 203 180 32x4 100
JVC-226 2.2 3 4000 1200/1000 684 413 370 ⌽323 340 110x2 302 178 32x6 205
JVC-376 3.7 5 6700 1200/1000 743 413 370 ⌽323 340 110x2 302 178 32x6 234
JVC-406 4.0 5.5 8200 1200/1000 890 470 395 ⌽326 400 350 420 200 32x4 305
JVC-456 4.5 6.0 9000 1200/1000 820 340 410 ⌽325 280 118x2 365 195 26x6 320
JVC-556 5.5 7.5 10000 1200/1000 895 500 440 ⌽380 390 128x2 340 218 38⌽ 353
JVC-756 7.5 10 12000 1200/1000 895 500 440 ⌽380 390 128x2 340 218 38⌽ 485
JVC-1306 13 18 18400 1200/1000 1077 612 564 ⌽560 520 140x3 510 290 45⌽ 800
8 POLE TYPE VIBRATOR SPECIFICATION & DIMENSION
Frame
Type-L
Utility Power
3Phase x 60Hz/50Hz x Any Voltage
Model Output
(kw)		 Horse Power
(HP)		 Exciting Force
(kg)		 Rpm
(60/50Hz)		 Dimensions Weight
(kg)
A B C D E F G H ⌽d
JVC-158 1.5 2 2000 900/750 684 413 370 ⌽323 340 110x2 302 178 32x6 172
JVC-228 2.2 3 3000 900/750 743 413 370 ⌽323 340 110x2 302 178 32x6 248
JVC-378 3.7 5 5000 900/750 895 500 440 ⌽380 390 128x2 340 218 38x6 353
JVC-558 5.5 7.5 8250 900/750 895 500 440 ⌽380 390 128x2 340 218 38x6 485
JVC-758 7.5 10 10700 900/750 1015 500 440 ⌽380 390 128x2 340 218 38x6 625
JVC-1108 11.0 15 16500 900/750 1077 612 564 ⌽560 520 140x3 510 290 45x8 890
